Anterior inferior cerebellar artery loop and tinnitus—is there any association between them?

Abstract

Background

Where there is no identifiable cause of otologic symptoms like hearing loss and tinnitus, it is believed that etiology could possibly involve a vascular loop in AICA compressing the vestibulo-cochlear nerve within the internal auditory canal. In this study, we aim to evaluate whether there is any association of AICA vascular loops with unexplained tinnitus.

Methods

The present prospective study was conducted in the Department of ENT, SMGS Hospital, GMC Jammu, from October 2020 to March 2022 on 131 subjects with unexplained tinnitus. All subjects were subjected to contrast enhanced MRI brain (3D fast spin echo T2W1 with drive equilibrium pulse) for evaluation of AICA using Chavda classification—type 1 (lying in CP angle, but not entering IAC), type 2 (entering IAC but extending < 50% of length of IAC), and type 3 (extending > 50% of length of IAC).

Results

Out of 131 unexplained tinnitus cases, 76 patients (58%) had AICA loop on MRI. Out of 16 patients with right sided tinnitus, 11 patients had AICA on same side, while 5 patients had AICA on the opposite (left) side. Out of 26 patients with left-sided tinnitus, 12 patients had AICA on same side, while 14 patients had AICA on the opposite (right) side, these findings being statistically insignificant (p = 0.153).

Conclusion

From our study, we can conclude that the presence of AICA vascular loop either on CP angle or within IAC in tinnitus patients is an incidental finding and has no role in its etiology.

Background

Cerebellopontine fissure is made when the cerebellum folds over pons, creating a sharp angle between the two called as cerebellopontine angle. The cerebellopontine angle is an important region in the brain as the trigeminal nerve, facial nerve, and vestibulocochlear nerve exit the brain at this level. Besides, these cranial nerves—CSF, arachnoid tissue, and anteroinferior cerebellar artery (AICA)—form other important contents of the CP angle [1].

AICA is a branch of basilar artery and gives off a labyrinthine artery that enters the internal auditory canal, along with the facial nerve, vestibulocochlear nerve, and nervus intermedius. In some 20–40% cases, a loop of AICA also enters IAC. Hence, due to its anatomical course, AICA is commonly involved in various compression syndromes [2].

The term vascular compression syndrome refers to the group of diseases caused by mechanical irritation of cranial nerve by other tissues, usually a blood vessel. This term was given by McKenzie in 1936 and popularized by Janetta in 1975 [3]. However, the first case possibly dates back to 1875 where a vertebral artery aneurysm was found to be a compressing facial nerve. The most commonly involved cranial nerves are the trigeminal nerve, facial nerve, and vestibulocochlear and glossopharyngeal nerve. The compression syndromes are usually of concern when they are symptomatic [4].

In some cases, where there is no identifiable cause of otologic symptoms like hearing loss and tinnitus, it is believed that etiology could possibly involve a vascular loop in AICA compressing the vestibulo-cochlear nerve within the internal auditory canal. But as such vascular loops are seen in asymptomatic individuals as well, there is an ongoing debate whether AICA loops are actually responsible for otological symptoms or not [5, 6].

Magnetic resonance imaging (MRI) is usually the radiological modality of choice to evaluate the temporal bone including the internal auditory canal and cerebellopontine angle in such patients with no identifiable cause of otological symptoms [7].

As there is very limited literature on this topic, especially in our local subpopulation, we, with our study, aim to fill these lacunae. In this study, we aim to evaluate whether there is any association of AICA vascular loops with unexplained tinnitus.

Methods

The present prospective study was conducted in the Department of ENT, SMGS Hospital, GMC Jammu, from October 2020 to March 2022 on 131 subjects with unexplained tinnitus.

The study was approved by the Institutional Ethics Committee. Written informed consent was taken from all subjects in the language they understood.

Relevant clinical history of hearing loss, tinnitus, and any other complaints was taken from all patients. General physical examination and systemic examination (CNS/CVS/respiratory) was done. Local ear examination, including otoscopy, was done. Examination of the nose, oral cavity, and indirect laryngoscopy was done.

All patients were subjected to pure tone audiometry. Pure tone average was calculated as average of 500, 1000, and 2000 Hz.

Routine blood investigations like CBC, RFT, LFT, triple serology (HIV, hepatitis B anti-HCV), blood sugar, thyroid profile, coagulation profile, VDRL, and ESR were done.

Inclusion criteria:

  1. 1)

    Unexplained tinnitus

  2. 2)

    Patients giving consent for participation in the study

Exclusion criteria:

  1. 1)

    Metabolic/systemic/otologic causes of tinnitus

  2. 2)

    History of ear surgery

  3. 3)

    History of ear discharge

All subjects were subjected to contrast enhanced MRI brain (3D fast spin echo T2W1 with drive equilibrium pulse) for evaluation of AICA using Chavda classification—type 1 (lying in CPA, but not entering IAC), type 2 (entering IAC but extending < 50% of length of IAC), and type 3 (extending > 50% of length of IAC).

All data was entered in Microsoft Excel spreadsheet and analyzed and compared using the Statistical Package for Social Sciences (SPSS) software (version 21 for windows). Appropriate statistical analytical tests were applied as per the advice of statistician.

Results

Out of 131 unexplained tinnitus cases, 76 patients (58%) had AICA loop on MRI. In these 76 patients, the mean age of presentation in our study was 48.06 ± 14.79 years, with the majority of patients in the age group of 41–60 years (Table 1). Out of 60 patients, there were 36 male patients and 40 female patients, with female to male ratio being 1.11:1.

Table 1 Age distribution

In our study out of 76 cases, 16 patients presented with tinnitus in the right ear and 26 patients in the left ear, and 34 patients had bilateral tinnitus (Table 2). In our study, out of 131 patients with unexplained tinnitus, 76 patients (58%) had AICA loop on MRI. Out of them, 46 cases had AICA type 2 loop (Fig. 1), 29 cases had AICA type 1 loop, and 1 case had AICA type 3 loop (Fig. 2).

Table 2 Tinnitus distribution

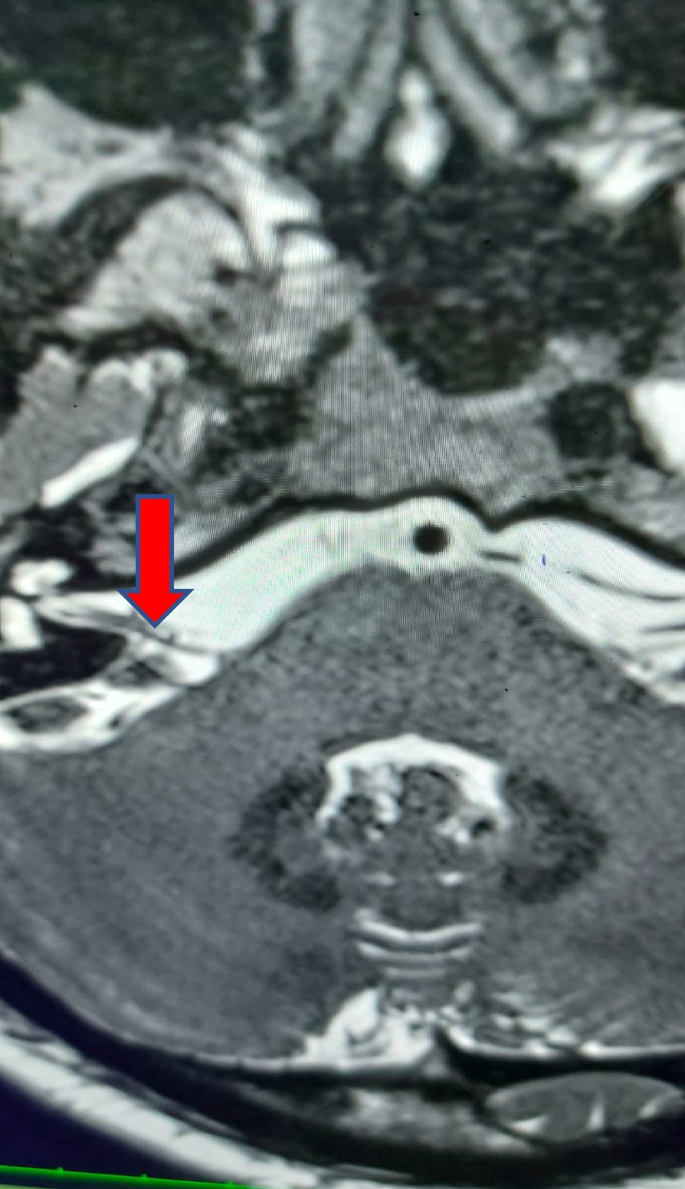

Fig. 1
figure 1

AICA loop type 2

Fig. 2
figure 2

AICA loop type 3

In our study, out of 16 patients with right-sided tinnitus, 11 patients had AICA on the same side, while 5 patients had AICA on the opposite (left) side. Out of 26 patients with left-sided tinnitus, 12 patients had AICA on same side, while 14 patients had AICA on the opposite (right) side (Table 3), these findings being statistically insignificant (p = 0.153).

Table 3 Correlation between AICA and tinnitus

Discussion

The term “tinnitus” was introduced by Pliny and means “to ring.” Tinnitus can be defined as an auditory perception due to altered spontaneous activity within the auditory pathway, which arises as a result of aberrant excitation or inhibition. The underlying mechanism for occurrence of tinnitus can be abnormal afferent excitation at cochlear level, efferent dysfunction, and alteration of spontaneous activity with tonotopic reorganization [8].

Vascular compression syndromes are basically a clinical entity involving compression of one of the cranial nerves by a vessel. The pathophysiology of vascular compression syndromes could be impaired blood flow by a neurovascular compression or focal demyelination, reorganization, and axonal hyperactivity due to compression. However, although the pathophysiology of vascular compression syndromes can be applied on various conditions like hemifacial spasm and trigeminal neuralgia, it cannot fully explain audiovestibular symptoms like tinnitus [9].

It has been hypothesized that AICA loop can cause irritation of VIII cranial nerve, leading to gliosis, edema, axonal degeneration, and eventual fibrosis of the auditory nerve, leading to audiovestibular symptoms like tinnitus, vertigo, and hearing loss. These changes in the auditory nerve can also induce changes in the brainstem auditory nuclei. However, various radiological studies have shown nearly same incidence of AICA loops in the CP angle and IAC in symptomatic and asymptomatic cases, thus creating significant discrepancy regarding association of AICA loop and tinnitus [10, 11].

In our study, the mean age of presentation was 48.06 years, which was comparable to study conducted by Gultekin S et al. [12]; however, Bhatia A et al. [1] showed a younger mean age of presentation (35 years). In our study, more female subjects were seen as compared to males [statistically insignificant, p > 0.05)], similar to the study conducted by de Abreu Junior L et al. [13]. However, Kazawa N et al. [14] showed male preponderance in their study.

In our study, out of 131 patients with unexplained tinnitus, 76 patients (58%) had AICA loop on MRI. Out of them, 46 cases had AICA type 2 loop (Fig. 2), 29 cases had AICA type 1 loop, and 1 case had AICA type 3 loop (Fig. 1). Thus, according to our study, AICA type 2 was most commonly involved with tinnitus, followed by type 1 and type 3. Our finding was consistent with the study conducted by McDermott AL et al. [15] and de Abreu Junior L et al. [13]. However, studies conducted by Bhatia A et al. [1] and Kazawa N et al. [14] showed that AICA type 1 was most commonly associated with unexplained tinnitus. In contrast, Kim M et al. [16] suggested in their study that tinnitus was more frequent with AICA type 3.

In our study (Fig. 3), out of 16 patients with right-sided tinnitus, 11 patients had AICA on the same side, while 5 patients had AICA on the opposite (left) side. Out of 26 patients with left-sided tinnitus, 12 patients had AICA on the same side, while 14 patients had AICA on the opposite (right) side; these findings being statistically insignificant (p = 0.153). Similar finding was shown in their studies by Makins et al. [17], Gultekin et al. [12], and Grocoske et al. [18], who also concluded that there was no cause-effect relationship between tinnitus and vascular loops. However, Nowe et al. [19], Mc Dermott et al. [15], and Ryu et al. [20] suggested significant association between vascular loops in the internal auditory canal and tinnitus. Mc Dermott et al. [15] studied not only tinnitus but also the association of all cochleovestibular symptoms (including hearing loss) with AICA, hence concluding a significant association. We in our study did not include hearing loss/vertigo patients. Furthermore, Ryu et al. [20] explored posterior fossa in AICA patients for microvascular decompression and showed there was significant improvement in tinnitus postoperatively. We in our study did not operate to know the association between AICA and tinnitus but only focused on non-invasive methods like MRI and clinical findings. Again, Nowe et al. [20] grouped tinnitus as pulsatile and non-pulsatile to show significant association between vascular compression of the cisternal segment of eighth cranial nerve and non-pulsatile tinnitus, while stating pulsatile tinnitus was due to direct the transmission of pulsations to the cochlea due to a resonance effect in the petrous bone. We believed that grouping of tinnitus would not change our results.

Fig. 3
figure 3

Flow diagram showing distribution of tinnitus and AICA

Thus, in our study, the presence of AICA loop in patients with unexplained tinnitus could just be an incidental finding and AICA loops might be a normal anatomical variation, and thus, unnecessary microvascular decompression surgeries may not be performed. From our study, we could also conclude that the presence of vascular loop in IAC (AICA type 2 loop) does not always lead to reduced regional nerve vascular perfusion, and further research needs to be done on the complicated pathophysiology/symptomatology of microvascular syndromes.

Conclusion

From our study, we can conclude that the presence of AICA vascular loop either on CP angle or within IAC in tinnitus patients is an incidental finding and has no role in its etiology. Further research needs to be done on vascular loops to distinguish whether it is a normal variation or a pathological entity.
