Bilateral antrochoanal polyps: a case report

Abstract

Background

Antrochoanal or Killian polyp is a rare polyp of the maxillary sinus in adults. It is generally unilateral, implanted on the lateral wall of the maxillary sinus upon the uncinate process. Bilateral cases are very rare; only 14 cases have been cited from 1980 to 2020.

Case presentation

Our patient presented with a complete bilateral nasal obstruction, this symptom persisted for more than 10 years, with a perceived prolapse in his throat in the last 4 months. Anterior rhinoscopy showed a polyp that took up the totality of his nasal vestibule. Posterior rhinoscopy showed a polyp bulging behind the uvula.

The challenge in this case is related to diagnosis decision; conditions with the same clinical presentation are several.

Diagnosis was established through the clinical, radiological, and endoscopic aspects, and confirmed by histological findings. Management was obtained through functional endoscopic sinus surgery; no recurrence was noted in the 12-month follow-up, and clinical signs had completely subsided.

Conclusion

Diagnosis in bilateral forms of Killian polyp is perplexing; however, its management is generally simple, with excellent outcome. We report the case of the 15th patient along with a systematic literature review discussing bilateral Killian polyps, illustrated by a rare case of enormous bilateral antrochoanal polyps.

Background

Antrochoanal polyp is a rare form of nasal polyps in adults; they are more seen in children and adolescents [1]. Bilateral forms are very rare [1,2,3,4,5,6,7]. Only 14 cases have been mentioned in the literature [8,9,10,11,12,13,14,15,16,17,18,19,20,21]. Diagnosis difficulty is generally due to the scarcity of this disease, and the similar clinical presentation of more frequent differential diagnosis [1,2,3,4]. Management is generally surgical through functional endoscopic sinus surgery, and outcome is great with clinical improvement and no recurrence in follow-up [8,9,10,11,12,13,14,15,16,17,18,19,20,21].

This is a very rare case of bilateral antrochoanal polyp that has long been treated as sinonasal polyposis, without any response to treatment; the aim of this article is to pinpoint the importance of thorough evaluation of clinical and endoscopic findings during patient’s follow-up in chronic rhinosinusitis to re-establish diagnosis and rearrange management strategy according to patient’s case.

Case presentation

A 45-year-old man came to daytime clinic in the Oto-rhino-laryngology department; he had no history of atopy or allergic rhinitis, and no other general conditions and comorbidities.

This patient have had bilateral chronic nasal obstruction for more than 10 years, associated with sporadic headaches, anosmia, nasal discharge, and the sensation of a mass in his throat. No other symptoms were noted.

No relevant medical or familial history was noted; there were no similar cases in the family.

He had never had any surgical interventions.

Anterior rhinoscopy showed a greyish polyp that took on the totality of both nasal cavities, visible in the nasal vestibule. No further landmarks of nasal cavity were visible. Oropharyngeal examination showed exteriorization of a multi-lobular mass behind the uvula.

The patient underwent laboratory and radiological tests. A mild inflammatory syndrome was found with CRP (C Reactive protein) at 35; white blood count was at 12,000, and no other anomalies were found. Respiratory assessment did not find any signs of chronic obstructive diseases, and cardiac assessment was unremarkable.

Computed tomography of paranasal sinuses showed an almost complete opacification of maxillary sinuses and the presence of soft tissue masses passing through the maxillary ostium and extending into the corresponding nasal cavities and posteriorly to the adjacent nasopharynx. The other sinuses were normally aerated. (Figs. 1 and 2).

Fig. 1
figure1

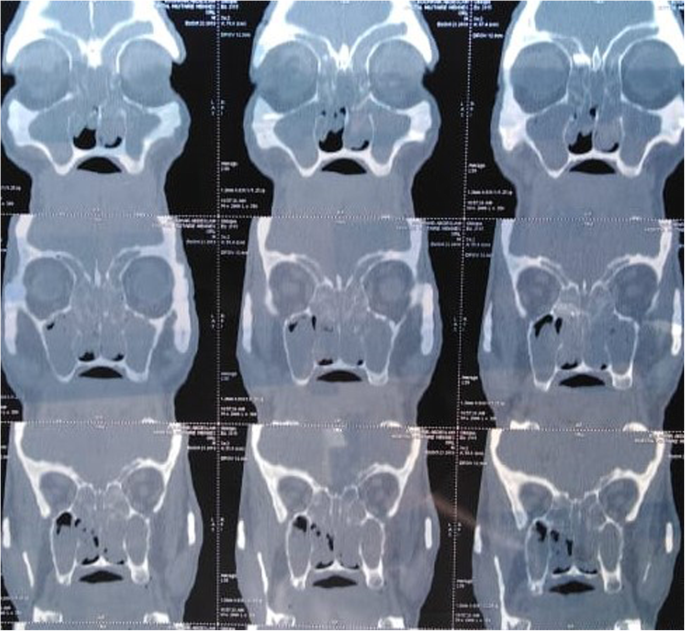

Coronal computed tomography (CT) scan sections of sinus cavities: showing an enlarged maxillary meatus, with blocked maxillary, frontal and sphenoidal sinuses, without bone defect

Fig. 2
figure2

Sinus axial CT scan sections of sinus cavities

A biopsy was performed and showed an inflammatory polyp.

The diagnostic challenge consisted on the heterogeneous pool of differential diagnosis, and the non-specific clinical presentation of this chronic condition.

Malignancy was first ruled out based on the chronic evolution and the absence of signs of infiltration to osseous walls. Then several chronic conditions were considered: Fernand-Widal syndrome, nasal polyposis, and allergic or infectious chronic rhinosinusitis. The diagnosis of bilateral antrochoanal polyp was maintained upon clinical, radiological, endoscopic and histological findings.

These polyps were classified grade III according to Chung et al.’s classification [6].

The patient first received a medical preparation with steroids and antibiotics before endoscopic surgery.

Oral steroids were prescribed: Prednisone 20 mg, 3 tablets once a day for 5 days, and a course of amoxicillin clavulanate, 1g three times a day for a week. No local treatment was prescribed because of the total obstruction of both nasal cavities.

The surgical procedure relied on functional endoscopic sinus surgery (FESS) under general anesthesia. It consisted of an uncinectomy, an antrostomy of the middle meatus, and a marsupialization of the polyps that were both implanted upon the uncinate process, and the polyps were then pulled through the oral cavity. The surgical intervention went on without any particular adverse event.

No changes in surgical technique were necessary.

In immediate postoperative care, the patient received first-line analgesia; ablation of nasal packing was performed 24 h postoperatively. No adverse events were reported.

The macroscopic aspect is typical of an antrochoanal polyp (Fig. 3). Histological examination confirmed the diagnosis of a bilateral form of Killian polyps.

Fig. 3
figure3

Macroscopic aspect of bilateral Killian polyps

The 12-month postoperative endoscopic control showed that mucosa was undergoing a healthy recovery process; no signs of recurrence or other abnormalities were noted.

The patient adhered to treatment; no complaints were reported.

No adverse events were reported.

Discussion

Antrochoanal polyps (ACP) are a rare form of polyps of the maxillary sinus in adults; the bilateral forms are even rarer [1,2,3,4,5,6,7,8,9]. Professor Killian was the first to describe an antrochoanal polyp in 1906 [1]. This polyp is generally implanted on the lateral and inferior wall of the maxillary sinus, most specifically inserted on the uncinate process [1,2,3,4]. It is seen mostly in adolescents and young adults, with no predilection for a certain gender. The most frequent symptoms are related to a dysfunction in the sinus drainage: pus discharge, headache, and nasal obstruction. Prolapse into the oropharynx can be responsible for snoring [2]. Bilateral forms are very rare; they have the same benign prognosis as the unilateral forms [1,2,3,4].

Etiological notions

The causes of antrochoanal polyps is still unclear: allergy, chronic rhinosinusitis, viral infections as well as bacterial ones are associated with a higher incidence of this benign tumor. Besides, anatomical variants that increase pressure inside the maxillary sinus are also incriminated in their formation (Fig. 4).

Fig. 4
figure4

Pathogenesis of antrochoanal polyp [1,2,3]

Epidemiological notions

Ages of patients ranged from 6 years old to 62 (Fig. 5).

Fig. 5
figure5

Age range of patients found in literature review [8,9,10,11,12,13,14,15,16,17,18,19,20,21]

Among the 14 patients, we found 7 females and 7 males (Fig. 6).

Fig. 6
figure6

Gender repartition in age groups in patients with bilateral antrochoanal polyp [8,9,10,11,12,13,14,15,16,17,18,19,20,21]

Ethnic origin is shown in Fig. 7.

Fig. 7
figure7

Age ethnic groups in patients with bilateral antrochoanal polyps [8,9,10,11,12,13,14,15,16,17,18,19,20,21]

Clinical presentation

The most common clinical presentation of ACP is nasal obstruction, sometimes bilateral, depending on the prolapse in the oropharynx [1,2,3,4,5]. Other symptoms are also cited in the literature, such as epistaxis, rhinorrhea, posterior nasal discharge, anosmia, foreign body sensation, halitosis, and snoring [1].

Rhinoscopy findings

Often, ACP is present as a bright mass coming in the middle meatus, with a stalk through the accessory ostium, with the presence of an egg-shaped mass behind the uvula [1,2,3,4,5].

Radiological findings

Radiological investigation through computed tomography and/or magnetic resonance imaging, allows to see the origin of the mass, the sinuses involved, as well as the absence of extension to cranial cavity and orbital cavities [1,2,3,4,5,6].

In the CT (computed tomography) scan, the diagnosis of ACP is established upon the presence of a mass filling the maxillary sinus into the middle meatus through the maxillary ostium, and into the choanae [1]. In the magnetic resonance imaging, the typical aspect is hypo-intense T1, enhanced T2 signals, and peripheral enhancement after gadolinium administration [1].

Shung et al. have established a radiological classification to antrochoanal polyps according to extension to nasopharynx and visibility of accessory ostium [6].

In Stage I, polyp does not reach nasopharynx.

Stage II is defined as a polyp that goes through the accessory ostium of the maxillary ostium that is fully occluded.

Stage III is defined when the antrochoanal polyp goes to the choanae, and the accessory ostium is partially occluded.

Besides, the same authors established a correlation between radiological aspect and histological findings, the more advanced the stage, the more important the inflammatory aspect in histological specimen [6].

Lee DH et al. find that children tend to present more advanced stages, which is explained by authors with late diagnosis in this age group [4].

Matrix organizing findings in 14 cases

The matrix for organizing findings concerning 14 cases are found in the literature (Table 1) [8,9,10,11,12,13,14,15,16,17,18,19,20,21].

Table 1 Matrix for organizing findings in 14 cases found in literature [8,9,10,11,12,13,14,15,16,17,18,19,20,21].

Macroscopic and histological aspects

Macroscopically, ACP appears like a white greyish mass, originating from the middle meatus into the nasal cavity, in some cases, with exteriorization into the oral cavity behind the uvula [1, 5]. Histological examination shows inflammatory polyps [1, 5]. The histological aspect shows infiltrates that are less inflammatory and eosinophilic than nasal polyposis [1, 4, 7, 8].

Differential diagnosis

Differential diagnoses are established upon clinical, endoscopic, and radiological findings (Table 2) [5].

Table 2 Differential diagnosis established upon clinical, endoscopic, and radiological findings [5]

Positive diagnosis

Histological aspect is the gold standard diagnostic tool. However, the combination of endoscopy and computed tomography, and MRI of sinonasal cavities in some cases can guide diagnostic reasoning [1, 4,5,6].

Management

However, mini-Caldwell and trans-canine have been described for good exposure and hence the complete removal of ACP [6]. However, the mini-invasive endoscopic technics by FESS (Functional endoscopic sinus surgery) is the gold standard surgical technic, since it has the same outcome with less risk of complications [1, 4,5,6].

The cornerstone of successful surgical removal of ACP is the identification and removal of its origin and bulk [5].

The surgical management though FESS is successful in most cases; the recurrent cases are due most probably to the growth of residual polypoid tissue in the maxillary antrum [6].

Establishing a communication between the natural maxillary ostium and the accessory ostium is key to avoid recirculation phenomenon postoperatively [4].

Shayasate et al. claim that recurrences are more frequent in children, and that follow-up for 24 months allows to diagnose 95% of recurrences [7].

Bilateral forms of antrochoanal polyp are very rare [1,2,3,4]. Establishing the right diagnosis and planning the surgical procedure are based on the presence of bilateral nasal obstruction, nasopharyngeal mass, the endoscopic aspect on preoperative evaluation and on computed tomography; the histological aspect confirms this diagnosis [1,2,3,4,5,6,7,8,9, 11, 14, 17,18,19,20,21].

Conclusions

Bilateral antrochoanal polyp is a rare benign condition that is very ill-lived by patients. Only 14 cases have been found in the literature. Strengths of this case reside in the presentation of a rare condition, presenting outside the age group in unilateral forms, and in a clinical context that had been misleading into considering other differential diagnosis.

It can be present in patients with all ages, and without particular pattern of gender predilection, early diagnoses upon clinical, endoscopic, and radiological and histological findings is possible. And treatment is generally surgical, with excellent prognosis

Patient’s perspective

The patient claimed that nasal obstruction subsided along with all the other symptoms, with a significant improvement of his sense of smell.
